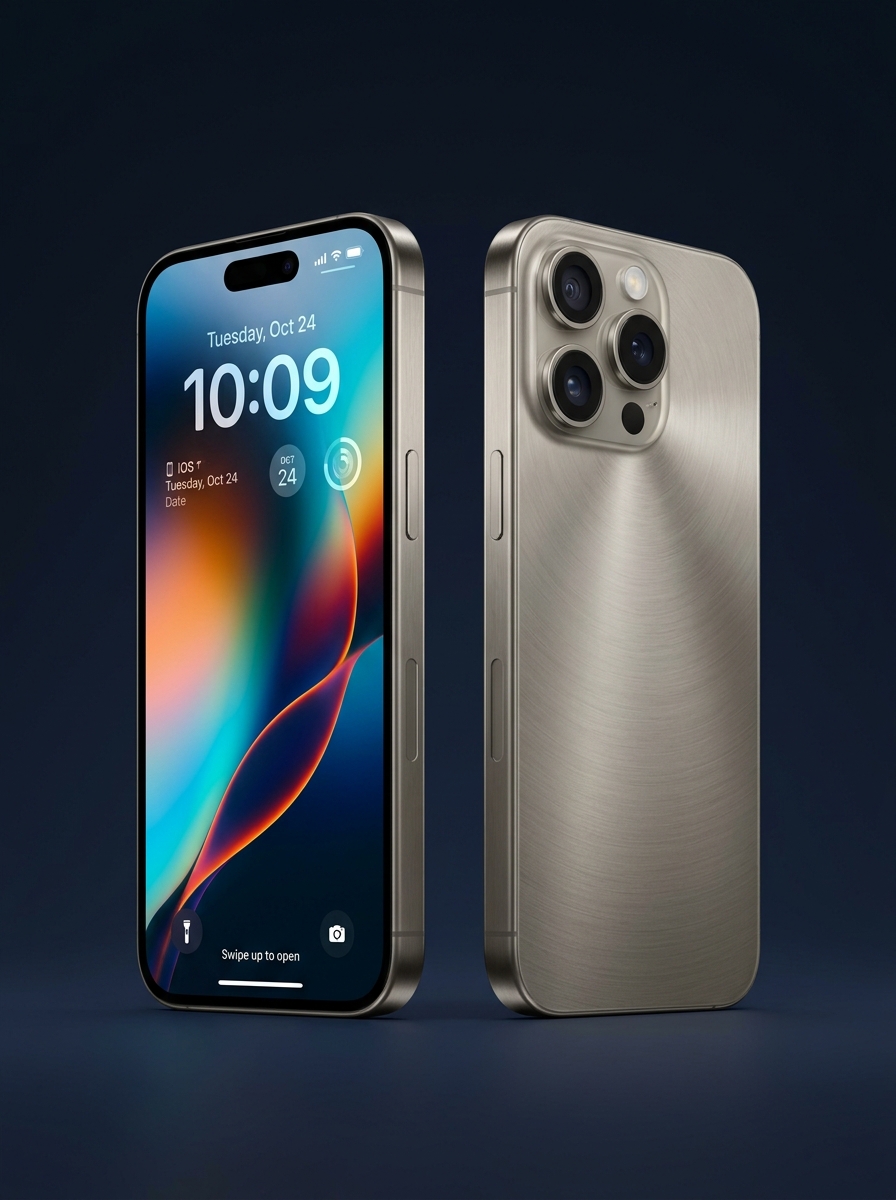

Apple iPhone 15 Pro Max
SPECIFICATIONS
🔍 Pictures ↗
Front
Gallery ↗
6.7"
1290 × 2796 px (~460 ppi density)
48 MP
4320p
12GB RAM
Apple A17 Pro
4441 mAh
⚡ 20W wired ((o)) 15W wireless
NETWORK
| Technology | GSM / CDMA / HSPA / EVDO / LTE / 5G |
| 2G bands | GSM 850 / 900 / 1800 / 1900 - A2849; CDMA 800 / 1900 |
| 3G bands | HSDPA 850 / 900 / 1700(AWS) / 1900 / 2100; CDMA2000 1xEV-DO |
| 4G bands | 1, 2, 3, 4, 5, 7, 8, 12, 13, 14, 17, 18, 19, 20, 25, 26, 28, 29, 30, 38, 40, 41, 66, 71 |
| 5G bands | 1, 2, 3, 5, 7, 8, 12, 14, 20, 25, 26, 28, 29, 30, 38, 40, 41, 66, 70, 71, 77, 78, 258, 260, 261 SA/NSA/Sub6/mmWave |
| Speed | HSPA, LTE-A (up to 4CA), 5G |
LAUNCH
| Announced | 2023, September 12 |
| Status | Available. Released 2023, September 22 |
BODY
| Dimensions | 159.9 x 76.7 x 8.3 mm (6.30 x 3.02 x 0.33 in) |
| Weight | 221 g (7.80 oz) |
| Build | Glass front (Corning-made), glass back (Corning-made), titanium frame (grade 5) |
| SIM | Nano-SIM and eSIM or Dual eSIM with multiple numbers |
| Protection | IP68 dust/water resistant (up to 6m for 30 min) |
DISPLAY
| Type | LTPO Super Retina XDR OLED, 120Hz, HDR10, Dolby Vision, 1000 nits (typ), 2000 nits (HBM) |
| Size | 6.7 inches, 110.2 cm2 (~89.8% screen-to-body ratio) |
| Resolution | 1290 x 2796 pixels, 19.5:9 ratio (~460 ppi density) |
| Protection | Ceramic Shield front |
PLATFORM
| OS | iOS 17, upgradable to iOS 18.1 |
| Chipset | Apple A17 Pro (3 nm) |
| CPU | 6-core (2x3.78 GHz performance + 4x2.11 GHz efficiency) |
| GPU | Apple GPU (6-core graphics, hardware-accelerated ray tracing) |
MEMORY
| Card slot | No |
| Internal | 256GB 8GB RAM, 512GB 8GB RAM, 1TB 8GB RAM (NVMe) |
MAIN CAMERA
| Triple Camera | 48 MP, f/1.8, 24mm (wide), 1/1.28", 1.22µm, dual pixel PDAF, sensor-shift OIS + 12 MP, f/2.8, 120mm (periscope telephoto 5x), 1.12µm, dual pixel PDAF, 3D sensor-shift OIS + 12 MP, f/2.2, 13mm, 120˚ (ultrawide) |
| Sensors | TOF 3D LiDAR scanner (depth) |
| Video | 4K@24/25/30/60fps, 1080p@25/30/60/120/240fps, 10-bit HDR, Dolby Vision HDR (up to 60fps), ProRes, Apple Log, 3D (spatial) video |
SELFIE CAMERA
| Single Camera | 12 MP, f/1.9, 23mm (wide), 1/3.6", PDAF, OIS + SL 3D (biometrics sensor) |
| Video | 4K@24/25/30/60fps, 1080p@25/30/60/120fps, gyro-EIS |
SOUND
| Loudspeaker | Yes, with stereo speakers |
| 3.5mm jack | No |
COMMUNICATIONS
| WLAN | Wi-Fi 802.11 a/b/g/n/ac/6e, dual-band, hotspot |
| Bluetooth | 5.3, A2DP, LE |
| Positioning | GPS (L1+L5), GLONASS, GALILEO, BDS, QZSS, NavIC |
| NFC | Yes (Apple Pay certified) |
| USB | USB Type-C 3.2 Gen 2 (up to 10Gbps), DisplayPort |
FEATURES AND SENSORS
| Sensors | Face ID, accelerometer, gyro, proximity, compass, barometer |
Editorial Technical Assessment
ORIGINAL ANALYSIS
Apple's iPhone 15 Pro Max transitions the flagship lineup to Grade 5 titanium substructures bonded to an internal aluminum chassis, achieving an 8.6% weight reduction alongside contoured edges. The pioneering TSMC 3nm A17 Pro silicon introduces hardware-accelerated ray tracing and a 6-core GPU architecture. The camera pipeline is highlighted by Apple's tetraprism periscope telephoto delivering a native 120mm equivalent 5x optical reach. With USB-C replacing Lightning at 10Gbps USB 3 transfer speeds, ProRes log video recording directly to external storage drives is fully enabled for professional video workflows.
